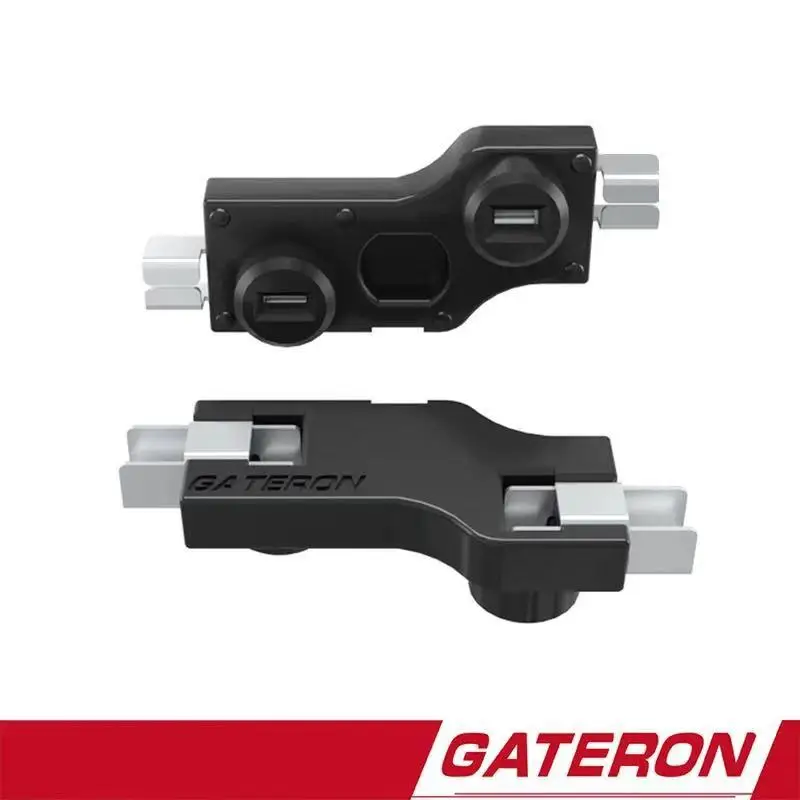

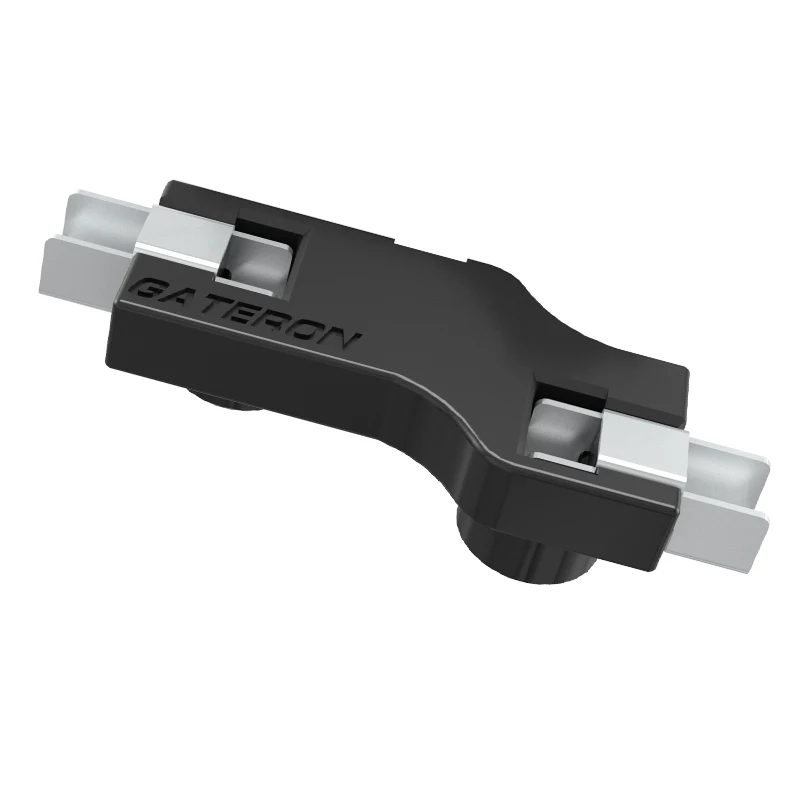

Gateron Hot-swappable PCB Socket Mechanical Keyboard DIY Hot Plug Socket For Cherry MX Switch Gateron Outemu Kailh CPG151101S11

Axis Body Brand: Gateron or Outemu
Style: Standard
Interface Type: USB
Operation Style: Mechanical
Language: English
Keyboard Standard: 104 Keys
Application: Desktop
Type: Wired
Brand Name: XUANXIANG
Origin: Mainland China
Certification: None
Features 1: Mechanical Keyboard DIY
Features 2: Hot-swappable
Features 3: Hot Plug
Features 4: Hot Plug Socket
Features 5: Sip Socket
Features 6: PCB Socket
Features 7: For Cherry MX Switch
Features 8: Gateron Switch
Features 9: Outemu Switch
Features 10: Kailh Box Switch
Features 11: CPG151101S11

Gateron Hot-swappable PCB Socket Mechanical Keyboard DIY Hot Plug Socket For Cherry MX Switch Gateron Outemu Kailh CPG151101S11

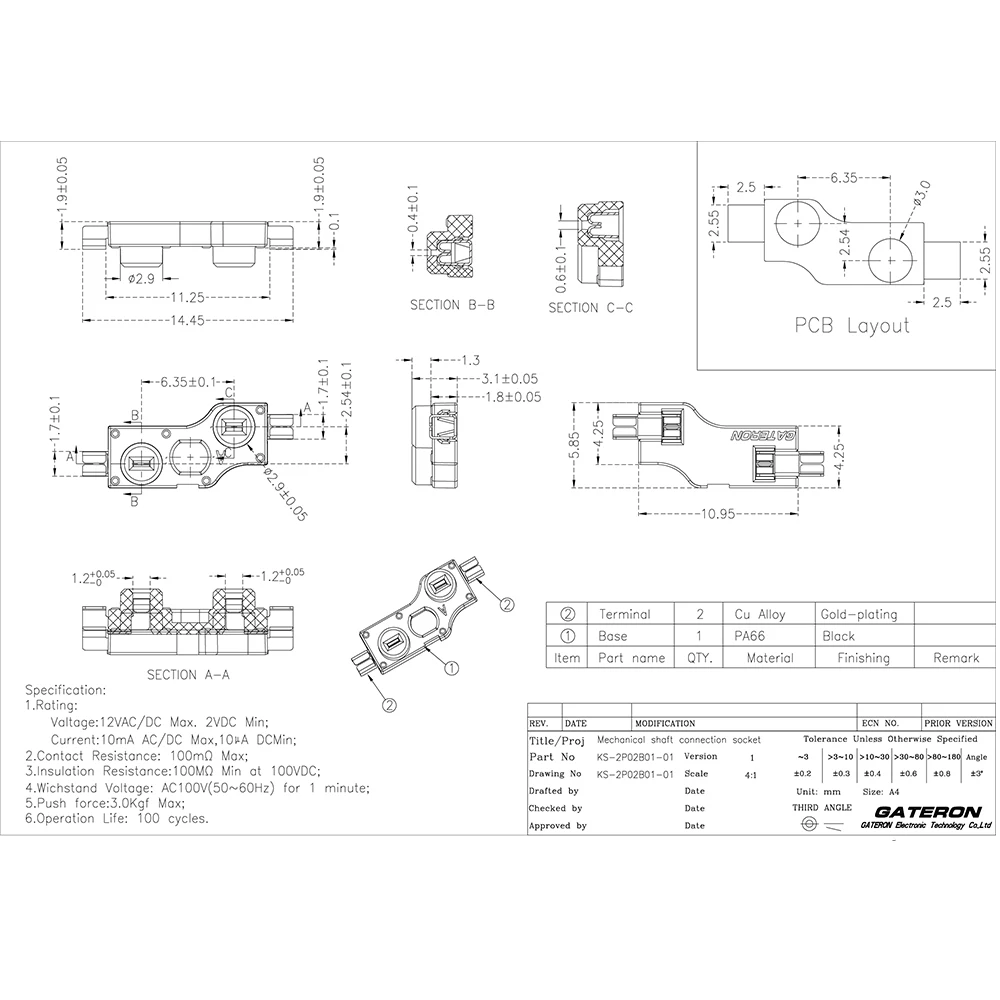

Specification:

Rating voltage: 12V AC/DC (maximum) and 2V AC (minimum)

Rating current: 10mA AC/DC (maximum) and 10μA DC (minimum)

Contact resistance: 100mΩ (maximum)

Insulation resistance: 100mΩ (minimum) (100V DC)

Withstand Voltage: AC100V(50-60Hz)

Motion Force: 3.0kgf max

Operating Life: 100 Cycles (can replace switches 100 times)

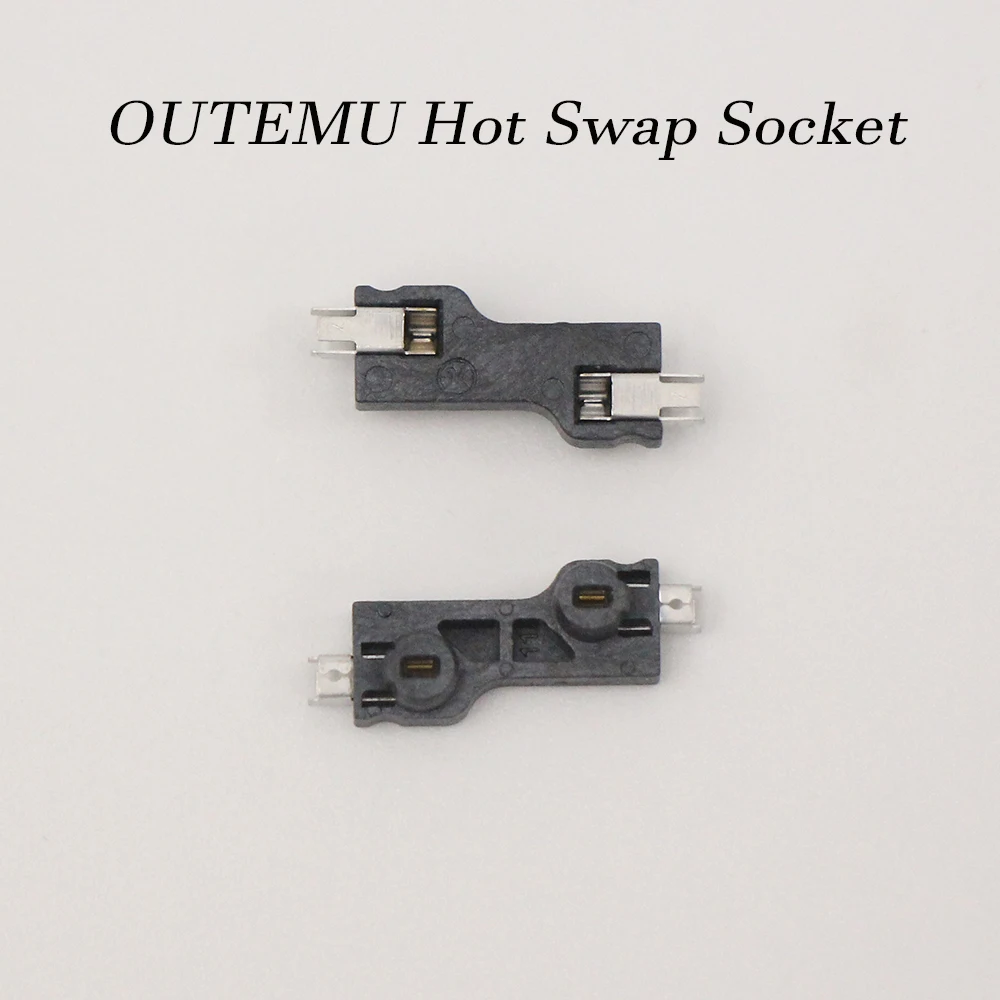

OUTEMU Hot Swap Sockets:

LCP material is more resistant to high temperature, gold plated internal shrapnel, fool-proof symmetrical design to avoid poor welding.

Compatibility:

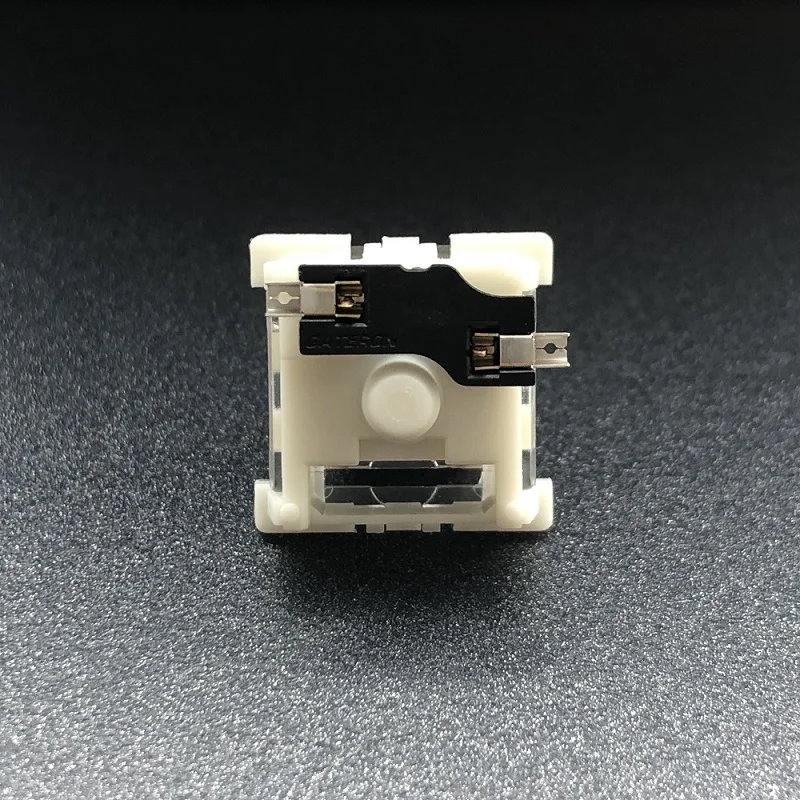

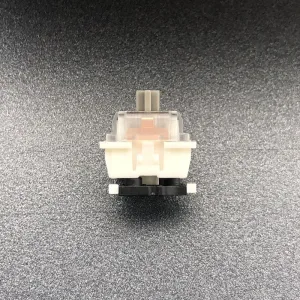

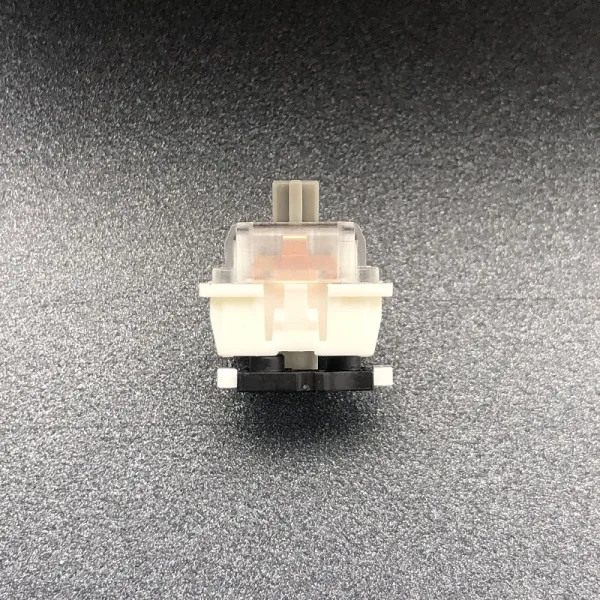

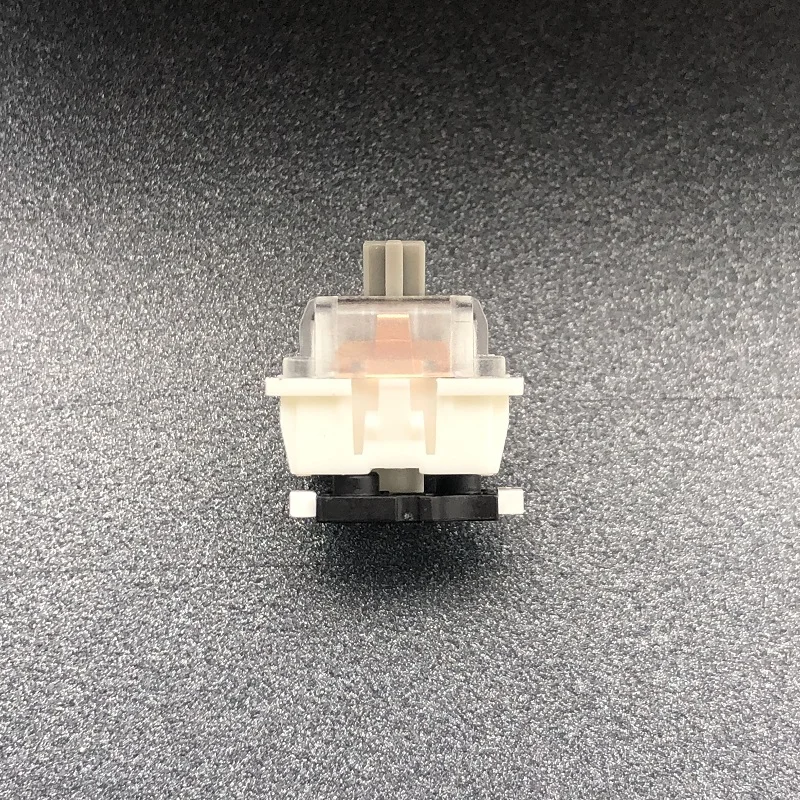

Compatible with most mechanical switches with three-pin and five-pin MX structure on the market, and can also be used with Kailh, TTC, GATERON Sockets.

Product Application:

For replacing switches from the keyboard easily, for DIY mechanical keyboard.cash registers equipment and Man-Machine interface.

NOTE:

Please make sure your keyboard PCB has a solderable interface to weld hot-swappable.
